EchoONE is designed and manufactured in compliance with the latest NDAA requirements ensuring data security while competitively priced to less secure options.
Echo weighs just 1.2kg and can be operated from smaller UAVs such as the Freefly Astro, Inspired Flight IF800 and DJI M300/M350, while operating reliably at a regulatory limit of 120m / 400ft agl delivering an accuracy of up-to 1.5cm RMSZ, ranging precision of 5mm and 0.5mrad 1/e2 beam divergence resulting in clean and precise point clouds.

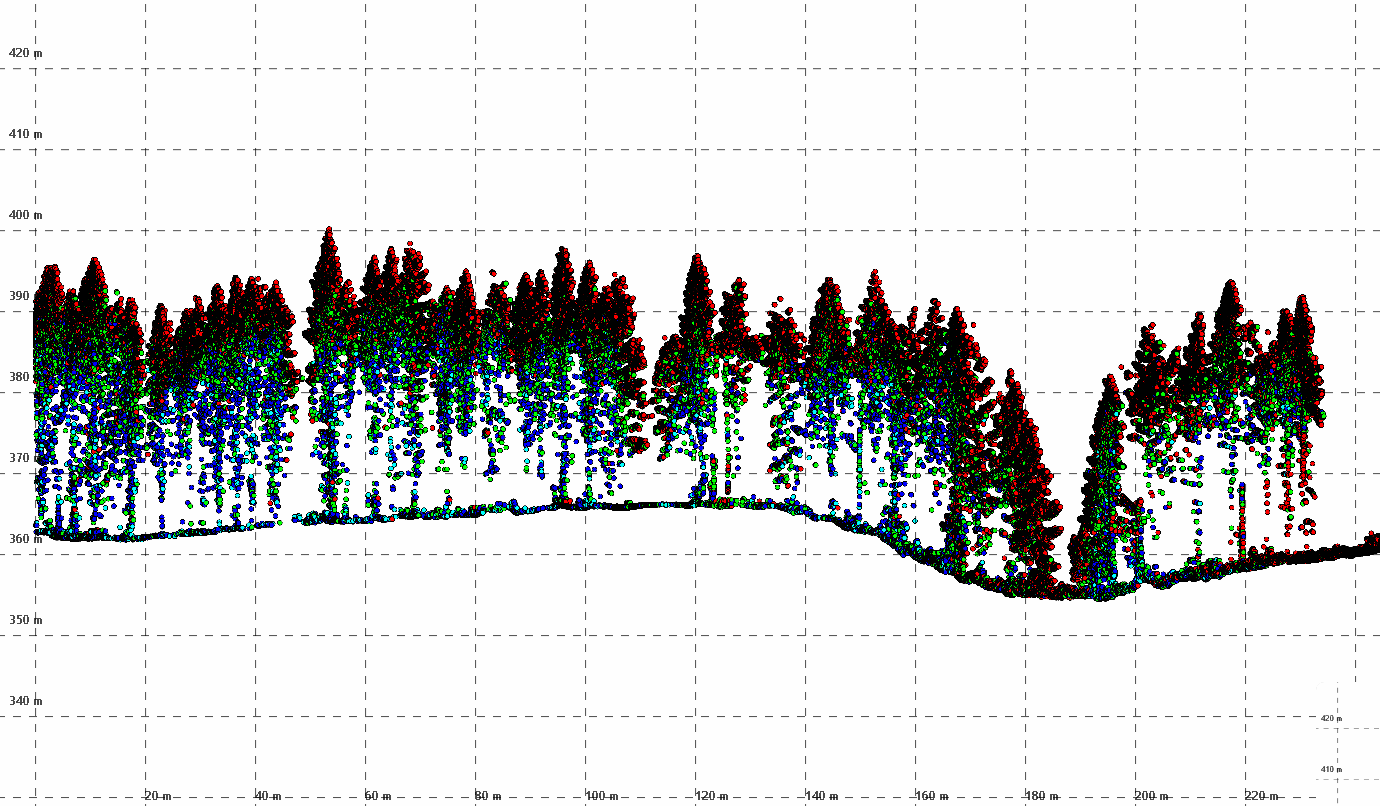

Full undecimated georeferenced point clouds generated in real-time allowing infield verification combined with rapid post-processing through RESEPI’s “one-click” PC-Master Pro post-processing solution. Full-featured post-processing available with Teledyne Geospatial LMS Professional.
270 m range to 20% reflectivity targets
Up to 8 returns per pulse
90 deg × 20 deg field of view
4 unique vertical scan angles
5 mm lidar ranging precision
1.5 cm georeferenced vertical accuracy
EchoONE is 1.2kg
Integrated 5MP global shutter camera
Optional 61MP camera
Inertial Labs KERNEL-210 tactical grade IMU
| Document | Type |
|---|---|
| EchoONE Datasheet |
